Bitumen Coating Fiberglass Road Pavement Geogrid Anti Cracking Geogrid 100KN

Product Categories

HDPE Geogrid [4]
Polyester Geogrid [50]
Fiberglass Geogrid [40]
Uniaxial Geogrid [5]
Biaxial Geogrid [10]
Polypropylene Nonwoven Geotextile [29]
HDPE Geomembrane [54]
Triaxial Geogrid [4]
Composite Geogrid [17]
Plastic Geogrid [2]
Composited Membrane [9]
Polyester Nonwoven Geotextile [22]
Woven Geotextile [7]
Erosion Control Geocell [11]
Basalt Geogrid [4]
Waterproof Membrane [5]
Composite Drainage Net [3]

Shenzhou Earth Working Material Co. Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Bitumen Coating Fiberglass Road Pavement Geogrid Anti Cracking Geogrid 100KN

Brand Name : SZ

Model Number : FG

Certification : ISO,CE

Place of Origin : China

MOQ : 10,000 Square Meter

Price : $0.3-$2.0/SQM

Payment Terms : L/C,T/T

Supply Ability : 100,000 Square Meters per Week

Delivery Time : 5-8 Working day

Packaging Details : By roll, paper pipe + black PE shrinkage membrane + woven bag ( waterproof & UV resistance)

Product Name : 100-100kn/m Fiberglass Geogrid

Application : Road Pavement

Function : Anti Cracking Geogrid

Material : Fiberglass Yarn

Coating : Bitumen & asphalt geogrid

Tensile Strength : 30kN/m-300kN/m

Elongation Rate : <=4%

Width : 1-6m

Length : 50m-100m

Mesh size : 25.4*25.4mm 12.5*12.5 50.8*50.8

Contact Now

Bitumen Coating Road Pavement Fiberglass Geogrid Anti Cracking Geogrid 100KN

Fiberglass geogrid is made of excellent reinforcement type non-alkali glass fiber yarn which is weaved into base material by using foreign advanced warp knitting directional structure. Fiberglass geogrid can make full use of yarn textile strength to improve its chemical performance, high tension resistance, tearing resistance and creep resistance. Yixing Shenzhou fiberglass geogrid system is widely used to reinforce road surface, prevent highway harm such as crack and rut from occurring, solve the problem that asphalt road surface is difficult to reinforce. Our fiberglass geogrid is ideal for newer road construction or pavement rehabilitation.

Bitumen Coating Fiberglass Road Pavement Geogrid Anti Cracking Geogrid 100KN

Fiberglass Geogrid Features

Excellent reinforcement material in road construction.
Extending service life of road and prevent deflection cracks.
Fiberglass geogrid is polymer coated and includes a tack-film which is features high tensile strength in both warp and weft directions, low elongation, excellent temperature range, good anti-age and alkali-resistance.
Compared to traditional materials, the use of fiberglass geogrid can reduce construction costs,
Suitable for all types of asphalt mixes.
Minimizes both thermal and stress related reflective cracking.
Reduces pavement rutting under high ambient temperatures and intense wheel loads.
Increases the fatigue life of pavements with weak foundations.
Extends pavement life.
Easy installation.

Bitumen Coating Fiberglass Road Pavement Geogrid Anti Cracking Geogrid 100KN

Fiberglass Geogrid Application

Reinforcement of roads and crack prevention for airport runways, taxiways, roads, bridges, parking lots, jointed concrete highways to control reflective cracking.
New highway construction, and other road maintenance/repair jobs to improve pavement life.
Expanding thoroughfares and road lanes.
Asphalt reinforcement at locations subject to intensive vehicle braking or accelerating, important junctions, bus stops etc.

Fiberglass Geogrid Specification

Fiberglass geogrid technological standard(GB/T 21825-2008)
specification		FG30×30	FG50×50	FG 60×60	FG 80×80	FG 100×100	FG 120×120	FG 150×150
Mesh center distance(mm)	MD	25.4±3.8 , 12.7±3.8
Mesh center distance(mm)	CMD	25.4±3.8 , 12.7±3.8
breaking strength(kn/m)	MD	30	50	60	80	100	120	150
breaking strength(kn/m)	CMD	30	50	60	80	100	120	150
Breaking Elongation(%)	MD	4	4	4	4	4	4	4
Breaking Elongation(%)	CMD	4	4	4	4	4	4	4
Width(m)		1m-6m	1m-6m	1m-6m	1m-6m	1m-6m	1m-6m	1m-6m

Bitumen Coating Fiberglass Road Pavement Geogrid Anti Cracking Geogrid 100KN

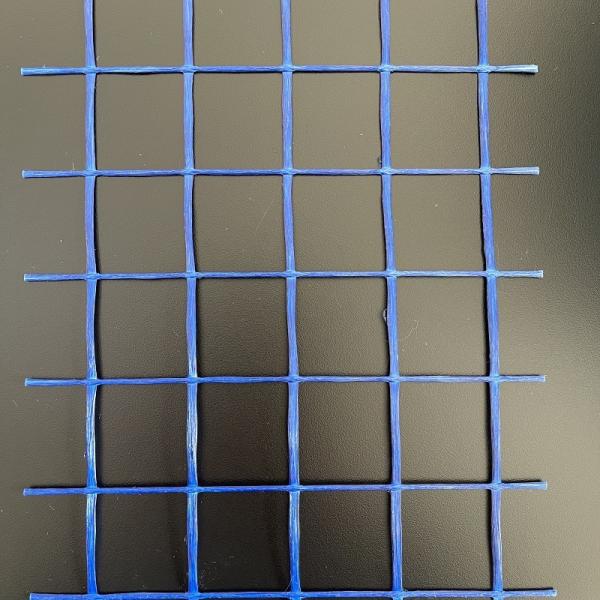

Fiberglass geogrid is a kind of planar mesh material using alkali-free fiberglass yarn as base body and then coated with high quality modified asphalt.

The strength can be produced from 15 KN to 300KN.Width and length per roll can be customized.

Specificaton	Tensile Strength(KN/M)	Elongation(%)	Width(m) Length(m)	Mesh Size(mm)
EGA 30-30	30KN/30KN	3%	1-6m 50-100m	12.7mm12.7mm 25.4mm25.4mm 38mm38mm 42mm42mm 50.8mm*50.8mm
EGA 40-40	40KN/40KN
EGA 50-50	50KN/50KN
EGA 60-60	60KN/60KN
EGA 80-80	80KN/80KN
EGA 100-100	100KN/100KN
EGA 120-120	120KN/120KN
EGA 150-150	150KN/150KN
EGA 200-200	200KN/200KN
EGA 300-300	300KN/300KN
EGA 400-400	400KN/400KN

Product Tags:

100KN Fiberglass Road Pavement Geogrid

Bitumen Coating Anti Cracking Geogrid

Bitumen Coating Fiberglass Road Pavement Geogrid Anti Cracking Geogrid 100KN Images
